Data centers are one of those things that almost everybody uses every single day without really thinking about them. At a basic level, a data center is simply a facility full of servers, networking equipment, storage systems, and the infrastructure required to keep all of it running 24/7. These facilities power websites, cloud platforms, streaming services, social media, online gaming, banking systems, and pretty much every major online service we use today. But the easiest way to understand what data centers actually do is by following the path your internet traffic takes from your house all the way to the service you’re trying to reach.

Starting From Your House

Every time you open a website, stream a movie, or launch an app, your device creates packets of data that need to travel across the internet to reach the service you’re requesting. Those packets first travel through your home network to your router, then out to your internet service provider. From there, your traffic enters a much larger interconnected network made up of regional providers, backbone carriers, exchange points, and data centers all working together behind the scenes.

A lot of people imagine “the cloud” as this magical thing floating around, but the reality is much simpler. The cloud is just someone else’s computer running in a data center somewhere. Your traffic physically travels across cables, switches, routers, and facilities spread throughout the world to reach those data centers.

PoPs (Points of Presence)

One of the first major places your traffic may reach is a PoP, or Point of Presence. A PoP is essentially a smaller network access location that extends a provider’s services closer to end users. Large cloud providers, ISPs, and content delivery networks place PoPs all over the world so users can access content faster and with lower latency. PoPs, however, are typically owned by an ISP and is where your internet “comes from”. Those ISPs then often partner with other companies to put servers in those PoPs so services are logically closer to the user. These are typically smaller concrete shacks or, in the back of a ISP office, so they typically go unnoticed. They are sometimes designed to fit in with the surrounding area so there is little attention drawn to them.

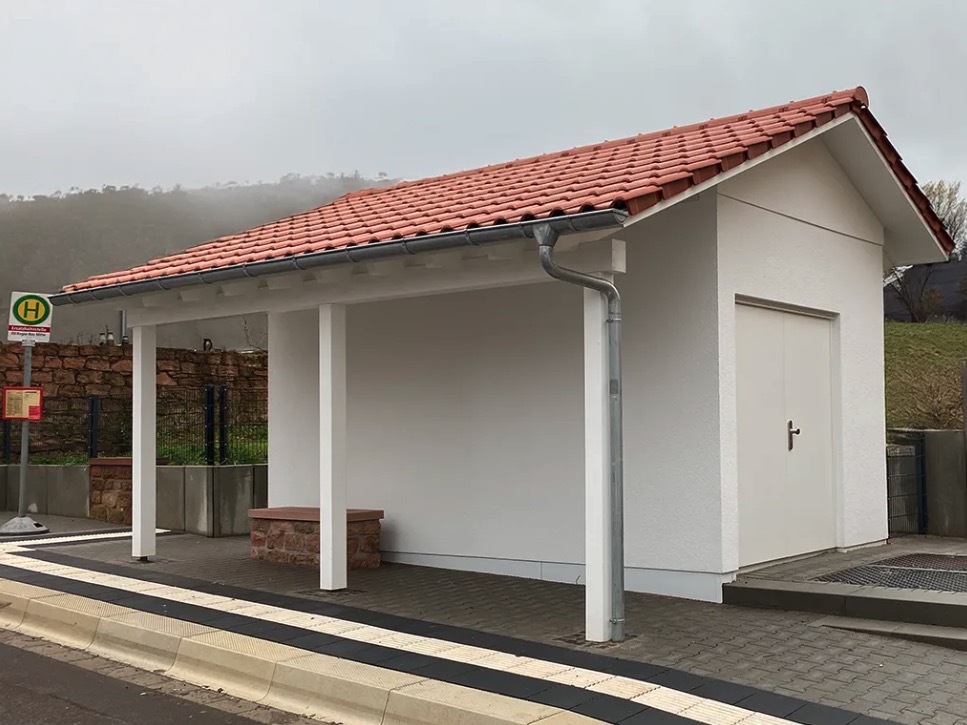

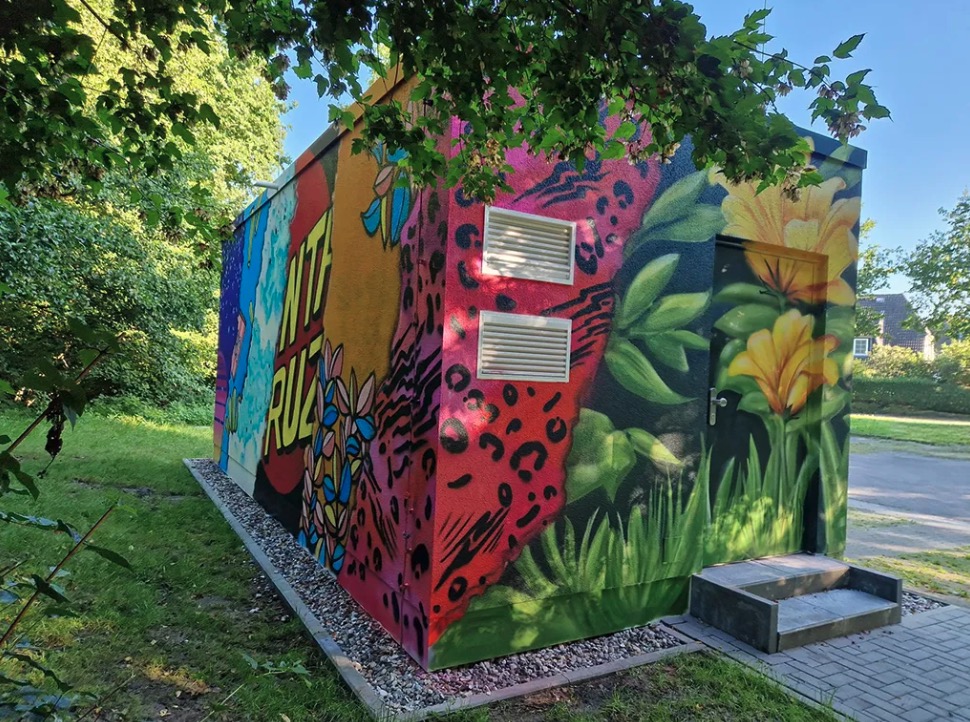

These are some pictures of small point of presence buildings. Images were pulled from this site, and do not own this image.

For example, when you watch a video online, there’s a good chance the content may already exist on a server located inside a nearby PoP rather than inside a faraway data center. This helps reduce congestion and improves performance because the traffic does not need to travel nearly as far and is logically closer to you. Companies strategically place PoPs in cities and major carrier hotels so they can deliver services closer to users.

However, not everything you request will exist in a local PoP. If the content or service is not available there, your traffic has to continue deeper into the internet.

IXPs and NAPs

If your requested data is not available inside a nearby PoP, your traffic will often travel through an IXP or NAP. These facilities are some of the most important connection points on the internet because they allow different networks to exchange traffic with one another. From simple cross building connections, to under sea fiber. These buildings are all over the world as well, from in the middle of states, to on the edge of the sea for under sea cable connections.

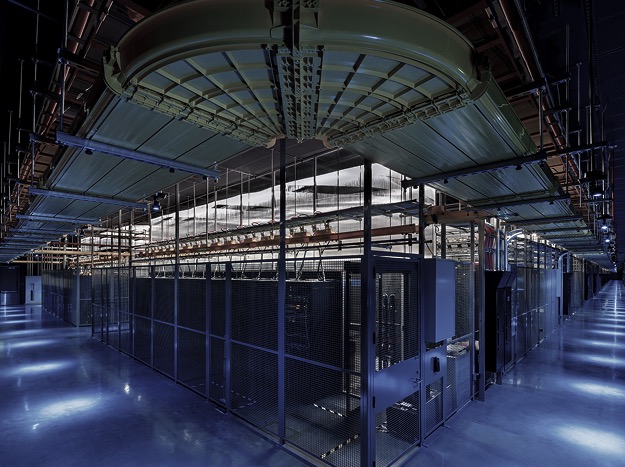

This is a picture of inside an Equinox IXP/Data Center. Image was pull from this site, and do not own this image.

An IXP, or Internet Exchange Point, is a location where internet service providers, cloud providers, content companies, and other networks directly peer/connect together. Instead of sending traffic through multiple third-party providers across long distances, networks can exchange traffic locally and much more efficiently. This lowers latency, improves speeds, and reduces costs for everyone involved.

NAPs, or Network Access Points, served a very similar purpose during the earlier growth of the internet. Historically, NAPs were major interconnection hubs that allowed large networks and providers to communicate with each other. While the modern internet relies more heavily on IXPs today, the overall concept remains the same that these facilities help stitch the internet together.

Without IXPs and NAPs, the internet as we know it simply would not function properly. They act like massive highway intersections for internet traffic, helping packets move between completely different networks around the world.

Data Centers

Eventually, your traffic may reach the actual data center hosting the service you’re trying to access. This is where the applications, databases, cloud systems, and backend servers live. Data centers are engineered with massive amounts of redundancy because downtime can be incredibly expensive. Most facilities contain backup generators, battery systems, advanced cooling systems, redundant internet providers, private fiber routes, physical security, and highly monitored environments. They are usually big buildings that look like warhouses.

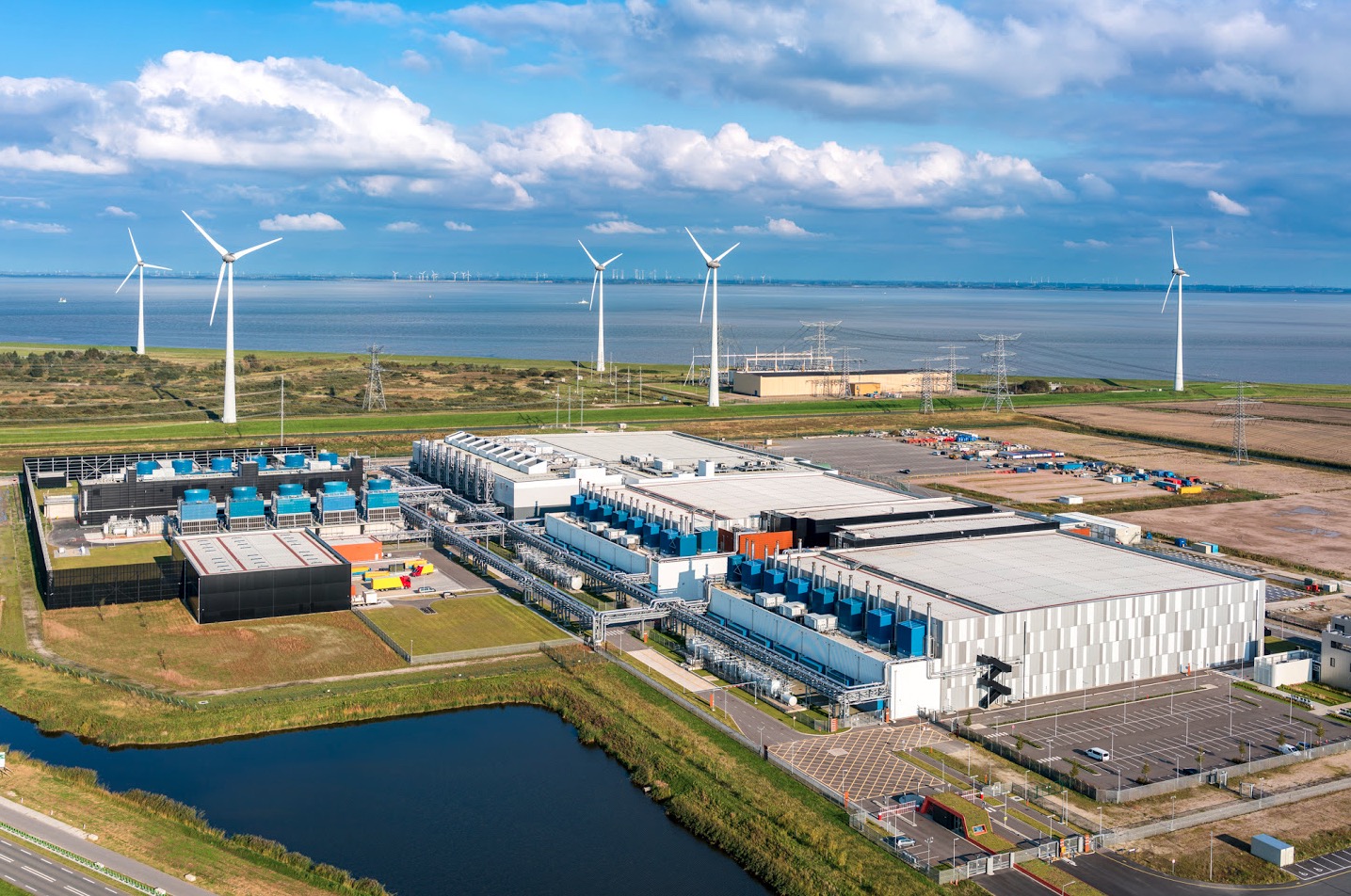

This is a picture of a Google Datacenter in the Netherlands. Image was pull from this site, and do not own this image.

When you stream a movie, access social media, use cloud storage, or visit a website, there is a very good chance the servers powering those services are running inside a data center somewhere. These facilities have become the backbone of modern society. Businesses rely on them for operations, hospitals rely on them for medical systems, banks rely on them for transactions, and millions of people rely on them daily without ever seeing them.

What’s important to understand is that none of these systems operate independently. Data centers rely on IXPs and backbone providers for connectivity. IXPs rely on providers and data centers participating in peering. PoPs rely on data centers for backend content and services. Every part of the internet ecosystem depends on the others to function properly.

Fusion Centers

Another term you may hear is “fusion center,” but unlike PoPs or data centers, fusion centers are not facilities that host websites or cloud platforms. Instead, fusion centers are information-sharing and coordination hubs designed to help multiple state and federal organizations communicate and work together more efficiently.

These centers help bring together information from different agencies, organizations, and infrastructure providers so important data can be analyzed and shared quickly. Their primary goal is to improve coordination, communication, and situational awareness between various groups that may need to respond to security concerns, emergencies, or large-scale events.

From a networking and infrastructure perspective, fusion centers are interesting because they highlight how important centralized communication really is. Just like IXPs help networks exchange traffic and data centers centralize computing resources, fusion centers centralize operational awareness and collaboration between multiple organizations. While they serve a very different purpose than traditional internet infrastructure, they still rely heavily on interconnected networks, communication systems, and data-sharing technologies to function effectively.

Summary

One thing you will notice about networking and the Internet is realizing how much physical infrastructure exists behind something as simple as loading a webpage. Your traffic starts at your house, travels through your ISP, reaches PoPs, crosses IXPs or NAPs, and eventually lands inside a data center hosting the service you’re trying to access. Then the response makes the entire trip back to you, often in milliseconds, and sometimes, not over the same physical path.

All of these facilities work together to make the internet function. PoPs bring services closer to users and connect users to the internet, IXPs and NAPs interconnect networks globally, data centers host the applications and services we rely on, and fusion centers help centralize and integrate large-scale infrastructure. Once you start looking at the internet this way, it becomes much easier to understand that the internet is not some abstract cloud floating in the sky, it’s a massive collection of interconnected networks, buildings, cables, routers, and servers all working together behind the scenes every second of the day.

In summary:

• A PoP or Point of Presence is a place close to your house. It’s where your internet connects to and sometimes services are hosted here.
• An IXP(internet Exchange Point) or NAP(Network Access Point) is where multiple different Internet service providers, cloud providers, and other services connect to each other to provide a better experience to users.
• A data center, is a big building filled with computers and networking equipment, where your favorite shows, songs, and websites actually live
